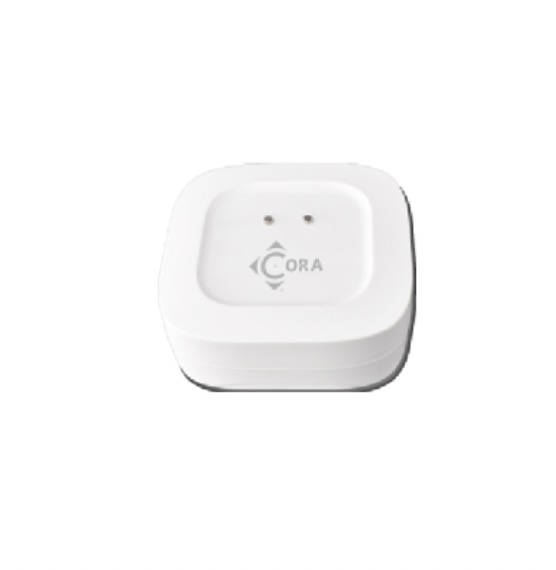

Water Leak Sensor（Rope）

By /

Feature

  • LoRaWAN Transmission
  •  Flexible water rope sensor
  • Ultra-low power consumption
  •  Built-in battery power supply
  • ABS material, safe and environmental protection
  •  Simple installation, no wiring required
  •  High detection sensitivity and fast alarm response time
  •  24 hours real-time monitoring
  • Low battery reminder function

Product Parameter

  • Dimension  116*87*27mm
  • Battery  Size AA*2 1200mAh*2
  • Alarm Type  LORAWAN
  • Sensing length   1~500 meters(Dependent on the length of the rope)
  • Operating temperature  -10~60℃
  • Operating humidity  <85%RH (non-condensing)
  • Protection level IP67
  • Installation Wall mounting, rail mounting

LORAWAN parameters

  • Wireless Protocol  LORAWAN v1.0.2
  • Type  Class A/C
  • frequency range  902MHz ~ 928MHz(US 915)
  • Bandwidth  125/250/500KHz configurable
  • data rate  0.018-37.5kbps
  • modulation technique  CSS (Chirp Spread Spectrum)
  • RX Power  +22dBm (max)
  • TX Sensitivity  -139dBm@SF12/125KHz
  • Operating mode  Sleep/Alarm Mode
  • Storage Environment  -30~50℃, <85%RH (non-condensing)
  • Storage Current  <=5mA
